Lima Locomotive Corporation
Photo Credit:

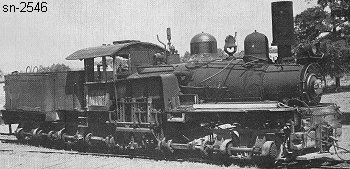

Left: by C. W. Witbeck from David Price collection

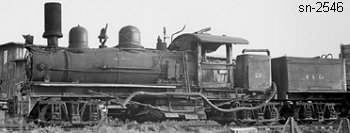

Right: by C. W. Witbeck
Shop Number 2546 - Built for: Westboro Lbr. Co.
{1,985th Lima Built Shay}
Built:
6-1-1912
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

4.85
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
113,800
Owners:
Westboro Lbr. Co., Westboro & Northwestern RY #3, Westboro, WI
(10-25-1920) Medford Lbr. Co. #7, Medford, WI
(5-28-1926) For sale
(6-30-1927) Homochitto Lbr. Co. #26, Bude, MS
Disposition: (3-3-1955) Scrapped
Additional Notes:
