Lima Locomotive Corporation
Photo Credit:
Left: George R. Kadelak collection
Right: Frank Stamford collection

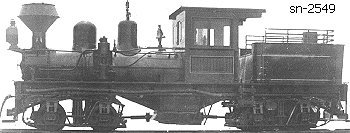

Shop Number 2549 - Built for: Alishan Forest RY
{1,988th Lima Built Shay}
Built:
6-22-1912
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
30"
Boiler:
[Style - Dia.]
ST. - 31.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
8,177 Lbs.
 Factor of
Adhesion:
5.35
 Maximum
Safe Speed:
10.3
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
730 Gallons
Empty Weight:
As built
36,616
Owners:
Samuel, Samuel & Co., Ltd. (D), Taipei, Formosa (Japan); For:
Alishan Forest RY #14, Kirun (Keelung), Formosa, (Japan)
(1945) Alishan Forest RY #14, Keelung (Chilung), Taiwan
(10-12-1971) Puffing Billy RY #14, Belgrave, Victoria, Australia
Disposition:

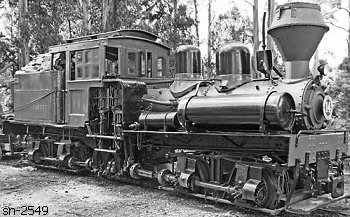

Displayed in February 2003 at the Puffing Billy Museum at Menzies Creek, Victoria, Australia
Additional Notes: Shipped to: Kirun (now Keelung), Formosa ( now Taiwan).
Note: Keelung is or has also been known as: Chilung, Chi-lung, Ke-lâng, Kilung, and Kirun.
There is only one original LIMA mark left on any of the Alishan RY Shays and it has no number. All of their Shays have been re-built, changing much of the original Lima product. Most were renumbered for various reasons without regard to Lima Shop Numbers over the years.
"Girder Type Frame"
SLc Survivor List
