Lima Locomotive Corporation

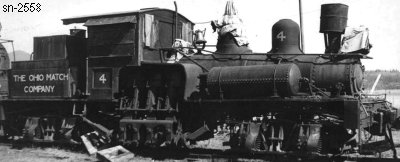

Photo Credit:
by unknown (early 1930's)
Shop Number 2558 - Built for: Anaconda Copper Mining Co.
{1,997th Lima Built Shay}
Built:
6-11-1912
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 10
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
12,85 Lbs.
 Factor of
Adhesion:
5.08
 Maximum
Safe Speed:
10.7
Fuel Type:
Wood
Fuel Capacity:
1 Cord
Water Capacity:
850 Gallons
Empty Weight:
As built
55,700
Owners:
Anaconda Copper Mining Co., Trout Creek. MT; For:
Leased to: Montana Log. Co. #1, St. Regis, MT; (contracting for Anaconda Copper Mining Co.)
(6-1916) Baird-Harper Lbr. Co., Warland, MT
(4-1924) Warland Lbr. Co. #1, Warland, MT
Fernwood Lbr. Co. #1, Fernwood, ID
(1-1-1927) For sale
J. H. O'Neil, St. Joe, ID; Shays not used
(3-29-1928) For sale, stored in Ohio Match enginehouse, Yardley, WA
The Ohio Match Co. #4, Coeur d'Alene, ID
(11-7-1933) Western Steel & Equip. Co. (D), Portland, OR
(3-1-1943) Velox Naval Supply Depot #1, Velox, WA
Disposition: Scrapped
Additional Notes: Shipped to: Trout Creek, MT
Converted to coal burner
