Lima Locomotive Corporation

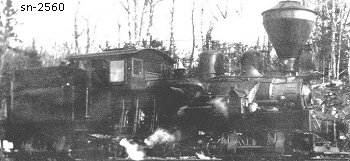

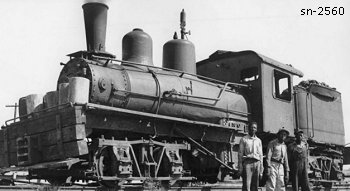

	Photo Credit: Left: Tony Howe collection - Right: W. George Cook collection

Shop Number 2560	-	Built for: Ray Lbr. Co.
{1,999th Lima Built Shay}

Built: 8-12-1912	Class: B 36-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 10 x 10
Gear Ratio: 2.05	Wheel Dia.: 29"	Gauge: std.	Boiler: [Style - Dia.] E.W.T. - 35.375"
Boiler Pressure: In Lbs. (PSI) 180	Tractive Effort: 14,315 Lbs.	Factor of Adhesion: 5.71	Maximum Safe Speed: 16.8
Fuel Type: Coal / Oil	Fuel Capacity: 2 Tons / 800 Gals.	Water Capacity: 1,200 Gallons	Empty Weight: As built 67,800
Owners: Ray Lbr. Co. #1, Ray Siding, ME Leased to: Indian Lake Lbr. Co., Ray Siding, ME Gammill Lbr. Co. #1, Pelahatchie, MS (2-1921) Apollonia Lbr. Co. #1 (1st), Pelahatchie, MS (7-20-1924) Pearl River Valley Lbr. Co. #11, Canton, MS (9-1938) Denkmann Lbr. Co. #11, Canton, MS
Disposition: (1939) Scrapped at Canton, MS
Additional Notes: Shipped to: Ray Siding ME
