Lima Locomotive Corporation

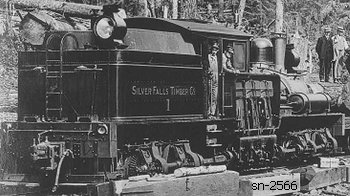

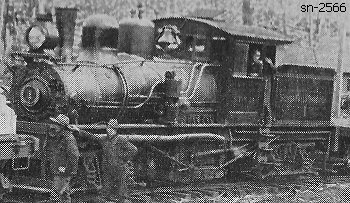

Photo Credit:
Left: by June Drake - Right: Martin E. Hansen collection
Shop Number 2566 - Built for: Silver Falls Tbr. Co.
{2,005th Lima Built Shay}
Built:
11-20-1912
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.71
Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
85,000
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Silver Falls Tbr. Co. #1, Silverton, OR
South Bend Mills & Tbr. Co. #2, Frances, WA
(c5-15-1922) Raymond Lbr. Co. #2, Raymond, WA
(4-20-1923) Lewis Mills & Tbr. Co. #2, South Bend, WA
(5-1931) Willapa Harbor Lbr. Mills #903, Raymond, WA
(12-1938) Western Machinery Exchange (D), Aberdeen, WA
(12-1939) Port of Grays Harbor #3, Aberdeen, WA
Disposition: (11-1945) Scrapped
Additional Notes: Shipped to: Portland, OR

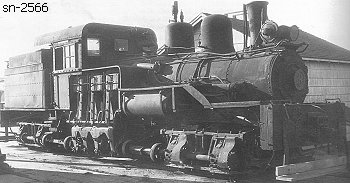

At Port of Grays Harbor adter rebuild, photo by H. A. Hill
