Lima Locomotive Corporation

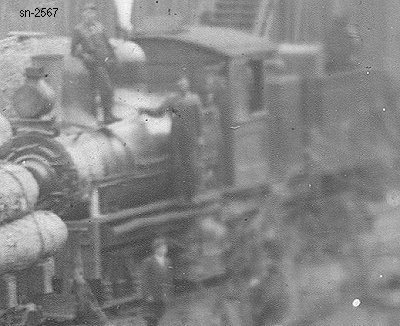

Photo Credit:
Marc Reusser collection
Shop Number 2567 - Built for: Blackwood Coal & Coke Co.
{2,006th Lima Built Shay}
Built:
7-3-1912
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.89
 Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
116,700
Owners: (Includes new data after 2018 Shay book completed)
(7-3-1912) Blackwood Coal & Coke Co. #1, Blackwood, VA, For:
(7-3-1912) Blackwood Lbr. Co. #1, Blackwood, VA
(by 8-1919) Blackwood Lbr. Co., Inc. #1, Pardee, VA
(1-1-1921) W. R. Pickering Lbr. Co. #25, Haslam, TX
(9-6-1928) W. R. Pickering Lbr. Co. #25, Camp Briton, TX
Disposition: Scrapped
Additional Notes:
