Lima Locomotive Corporation

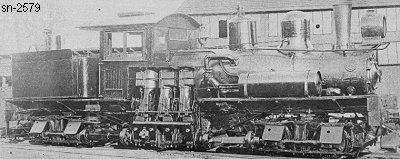

Photo Credit:
George Kadelak collection (c1923)
Shop Number 2579 - Built for: Alabama Interstate Power Co.
{2,018th Lima Built Shay}
Built:
9-11-1912
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.02
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,800
Owners:
Alabama Interstate Power Co., Montgomery, AL
Sugar Valley Land Co., Sugar Valley, GA
(c1918) La Follette Coal & Iron Co., Sugar Valley, GA
Southern Iron & Equip. Co. (D) #1882, Atlanta, GA
(11-1923) Alarka Lbr. Co. #2, Alarka, NC
Disposition: Scrapped
Additional Notes: Shipped to: Ocampo, AL
