Lima Locomotive Corporation

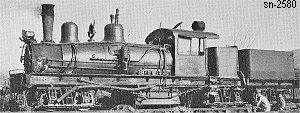

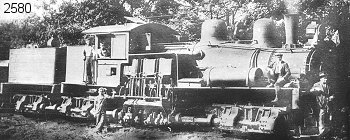

Photo Credit:
Left: Thomas Lawson Jr. collection
Right: Harry Bowser collection
Shop Number 2580 - Built for: Jennings Brothers
{2,019th Lima Built Shay}
Built:
9-21-1912
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

4.99
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
119,600
Owners:
Jennings Brothers, Jennings Brothers RR #8, Jennings, MD
(by 12-4-1920) Leased to: M. Knecht & Sons, Meyersdale, PA
(1921) Northern Maryland & Tidewater RR Co. #8, Jennings, MD
(7-1924) Birmingham Rail & Loco. Co. (D) #1539, Birmingham, AL
(8-21-1925) Swift-Hunter Lbr. Co. #80, Atmore, AL
(11-1928) Champion Fibre Co., Tennessee & North Carolina RY #80, Andrews, NC
Disposition: (1952) Scrapped
Additional Notes:
