Lima Locomotive Corporation

Photo Credit:
Kyle J. Neighbors collection

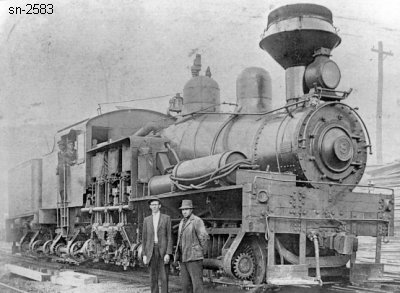

Shop Number 2583 - Built for: West Virginia Pulp & Paper Co.
{2,022nd Lima Built Shay}
Built:
11-7-1912
Class:
C
100-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 15 x 17
Gear Ratio:
2.05
Wheel Dia.:
40"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 58.5"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
44,107 Lbs.
 Factor of
Adhesion:
5.44
 Maximum
Safe Speed:
23.2
Fuel Type:
Coal
Fuel Capacity:
6 Tons
Water Capacity:
5,000 Gallons
Empty Weight:
As built
191,500
Owners:
West Virginia Pulp & Paper Co., Greenbrier, Cheat & Elk RR #8, Cass, WV
(10-1928) West Virginia Pulp & Paper Co., #8, Cass, WV
Disposition: (10-1939) Scrapped at Cass, parts sent to Clarksburg, WV junk dealer.
Additional Notes:
