Lima Locomotive Corporation

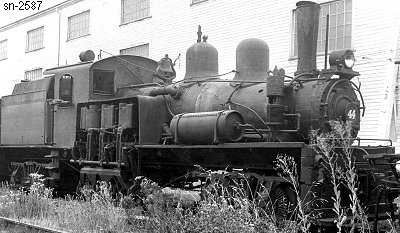

Photo Credit:
Jim Gertz collection (1930's)
Shop Number 2587 - Built for: Simpson Log. Co.
{2,026th Lima Built Shay}
Built:
8-13-1912
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
23,868 Lbs.
Factor of
Adhesion:

5.45
Maximum
Safe Speed:

19.4
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
109,400
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Simpson Log. Co. #2 (2nd), Shelton, WA
Converted to oil burner
(1920) Fredson Brothers Log.Co. #2 (2nd), Shelton, WA
(10-25-1922) Phoenix Log. Co. #2 (2nd), Potlatch, WA
Foster-Newbegin Lbr. Co., Frederickson, WA
(11-12-1924) Hofius Steel & Equip.Co. (D), Seattle, WA
(2-17-1925 to 4-19-1926) Leased to: Puget Sound Sawmills & Shingle Co. #2, Concrete, WA
(2-1-1928 to 9-1-1928) Leased to: Saginaw Tbr.Co., Vesta, WA
Erickson and Fuhrman, Rockport, Skagit County, WA
(1-4-1932) Columbia Contract Co. #2, Astoria, OR
Winston Brothers & Guy F. Atkinson Co., #44, Reedsport, OR
Willamette Iron & Steel Works. (D), Portland, OR
Disposition: (1939) Scrapped
Additional Notes: Shipped to: Olympia, WA
