Lima Locomotive Corporation

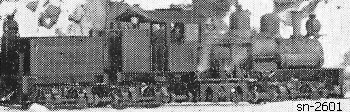

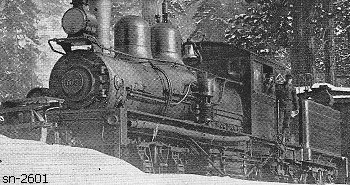

Photo Credit:
Both: Hank Johnston collection (1-12-1913)
Shop Number 2601 - Built for: Stone & Webster Co.
{2,040th Lima Built Shay}
Built:
10-26-1912
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
25,820 Lbs.
 Factor of
Adhesion:
4.60
 Maximum
Safe Speed:
15.1
Fuel Type:
Oil
Fuel Capacity:
1000 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
98,700
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Stone & Webster Co., Big Creek RR #103, El Prado, CA
(1913) San Joaquin & Eastern RR Co., San Joaquin & Eastern RR #103, Auberry, CA
Phoenix Lumber Co. #2, Springdale, WA
Anderson & Middleton Lbr. Co., Cottage Grove, OR
(2-20-1926) Willamette Iron & Steel Co. (D), Portland, OR
Nehalem Timber & Log. Co. #6, Scappoose, OR
(1926) Clark & Wilson Lbr. Co. #6, Scappoose, OR
(1930) Clark & Wilson Lbr. Co. #6, Wilark, OR
Disposition: (1943) Scrapped
Additional Notes:
