Lima Locomotive Corporation

Photo Credit:

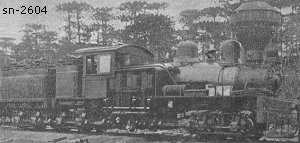

Right: Eduardo Coelho Postcard collection, Brazil (c1920)

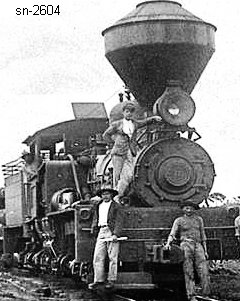

Front: Sergio Romano collection
Shop Number 2604 - Built for: Southern Brazil Lbr. & Colonization Co.
{2,043rd Lima Built Shay}
Built:
12-3-1912
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
39.375
[1 Meter]
 Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.68
 Maximum
Safe Speed:
19.0
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
3,000 Gallons
Empty Weight:
As built
116,528
Owners:
Southern Brazil Lbr. & Colonization Co., Tres Barras, Brazil
Disposition: Scrapped
Additional Notes: Shipped to: Paranazea, Brazil
