Lima Locomotive Corporation

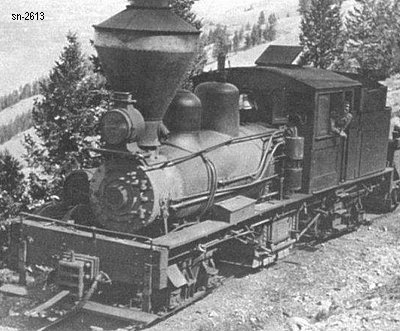

Photo Credit:
South Custer Historical Society, Mackay Idaho
Shop Number 2613 - Built for: The Trinchera Estate Co.
{2,052nd Lima Built Shay}
Built:
10-12-1912
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,315 Lbs.
 Factor of
Adhesion:
5.43
 Maximum
Safe Speed:
16.8
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
63,700
Owners:
Trinchera Tbr, Co. (The Trinchera Estate Co.) #1, Pueblo, CO
(1-1917) Herr-Rubincam Supply Co. (D), Denver, CO
(1-9-1917) Empire Copper Co. #1553, Mackay, ID
(4-8-1918) Machinery Supply Co. (D), Seattle, WA
(5-7-1918) {Std.] United Grain Growers Sawmills, Ltd. #1, Hutton Mills, BC, CAN
(1926) Canadian Willamette Co., Ltd. (D), Vancouver, BC, CAN
Disposition: (after 1937) Scrapped
Additional Notes: Shipped to: Walsenburg, CO then on to Pueblo, CO
