Lima Locomotive Corporation

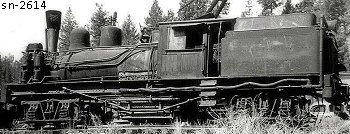

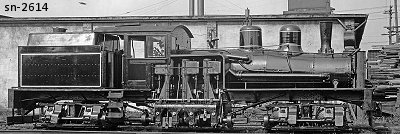

Photo Credit:
Both: Martin E. Hansen collection (right on 7-29-24)
Shop Number 2614 - Built for: Deep River Log. Co.
{2,053rd Lima Built Shay}
Built:
1-20-1913
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.53
 Maximum
Safe Speed:
17.2
Fuel Type:
Oil
Fuel Capacity:
950 Gals.
Water Capacity:
1,750 Gallons
Empty Weight:
As built
83,350
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Deep River Log.Co. #5 (2nd), Deep River, WA
(7-29-1924) For sale
Zimmerman-Wells-Brown (D), Portland, OR
(by 11-20-1925) Mount Emily Lbr. Co. #5, Hilgard, OR
(9-17-1942) Willamette Iron & Steel Works (D) #5, Portland, OR, For use in their shipyards at Portland, Ore.
Disposition: Scrapped
Additional Notes: Shipped to: Albina, OR
