Lima Locomotive Corporation

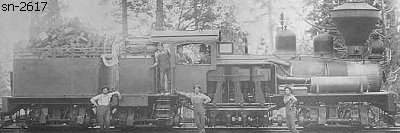

Photo Credit:
Marc Russer collection (c1927)
Shop Number 2617 - Built for: Madera Sugar Pine Co.
{2,056th Lima Built Shay}
Built:
12-7-1912
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
25,820 Lbs.
Factor of
Adhesion:

5.00
Maximum
Safe Speed:

15.1
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
110,200
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Madera Sugar Pine Co. #5, Sugar Pine, CA
(1935) California Door Co., Diamond Springs, CA; For:
Diamond & Caldor RY, Diamond Springs, CA, for parts
Disposition: (8-6-1948) Scrapped
Additional Notes: Shipped to: Raymond, CA
(5-29-1939) Only the locomotive was sold to Diamond & Caldor RY., the third truck and tank remained behind at Madera Sugar Pine Co. and were later scrapped there.
