Lima Locomotive Corporation

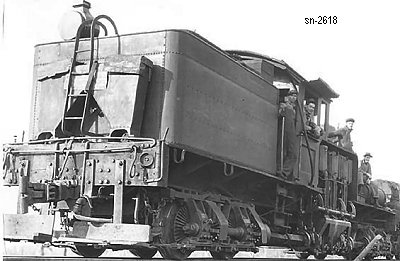

Photo Credit:
Clark Kinsey
Shop Number 2618 - Built for: Hamilton Log. Co.
{2,057th Lima Built Shay}
Built:
11-29-1912
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,866 Lbs.
 Factor of
Adhesion:
5.48
 Maximum
Safe Speed:
19.4
Fuel Type:
Coal / Oil
 Fuel Capacity:
3.75 Tons / 1200 Gal
 Water Capacity:
2,000 Gallons
Empty Weight:
As built
105,500
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Hamilton Log. Co. #4 Hamilton, WA
(1917) Lyman Tbr. Co., (Soundview Tbr. Co.) #4, Hamilton, WA
(1937) Soundview Pulp Co. #4, Hamilton, WA
Disposition: (1950) Scrapped
Additional Notes:
