Lima Locomotive Corporation

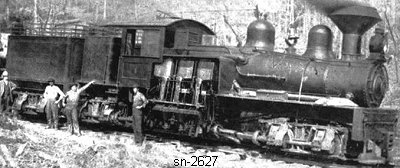

Photo Credit:
George R. Kadelak collection
Shop Number 2627 - Built for: Homochitto Lbr. Co.
{2,066th Lima Built Shay}
Built:
1-31-1913
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.75
Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
2.5 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
116,200
Owners:
Homochitto Lbr. Co. #4 later #24, Bude, MS
Disposition: (5-25-1942) Scrapped
Additional Notes: Converted to wood burner
