Lima Locomotive Corporation

Photo Credit:
Left: Marc Reusser collection - Right: Humboldt State University Library

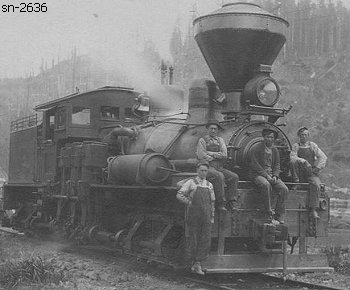

Shop Number 2636 - Built for: Little River Redwood Co.
{2,075th Lima Built Shay}
Built:
4-25-1913
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.27
 Maximum
Safe Speed:
19.4
Fuel Type:
Wood
Fuel Capacity:
3.75 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
103,665
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Little River Redwood Co. #2, Crannell, CA
Little River Redwood Co. #2, Bulwinkle, CA
(1931) Hammond & Little River Redwood Co. #2, Crannell, CA
(1936) Hammond Redwood Co. #2, Crannell, CA
(1942) Hammond Lbr. Co. #2, Crannell, CA
Disposition: (8-6-1948) Scrapped
Additional Notes:
