Lima Locomotive Corporation

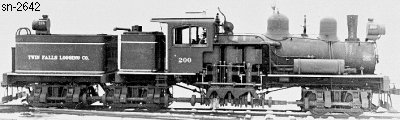

Photo Credit:
Left: by Clark Kinsey - Right: George R. Kadelak collection (BP 2-1913)
Shop Number 2642 - Built for: Twin Falls Log. Co.
{2,081st Lima Built Shay}
Built:
2-28-1913
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.15
Maximum
Safe Speed:

19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
129,000
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Twin Falls Log. Co. #200, Yacolt, WA
(c1917) Clark County Tbr. Co. #200, Yacolt, WA
(c1919) Carlton Consolidated Lbr. Co., Carlton & Coast RR #70, Carlton, OR
(1922) Flora Log. Co., Carlton & Coast RR #70, Carlton, OR
Clyde Equip. Co. (D), Portland, OR
(6-15-1922) St. Paul & Tacoma Lbr. Co. #6, Ohop, WA
Disposition: Scrapped
Additional Notes: Carlton & Coast RR ran from Carlton to Tillamook Gate & Neverstill
