Lima Locomotive Corporation

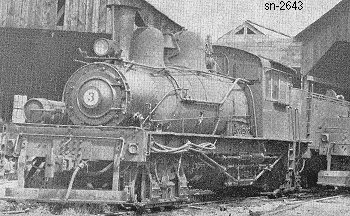

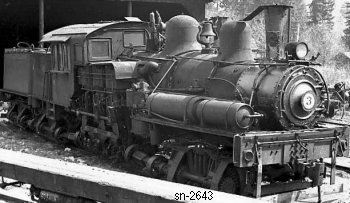

Photo Credit:
Both: by Albert Farrow
Shop Number 2643 - Built for: Skagit Log.Co.
{2,082nd Lima Built Shay}
Built:
7-12-1913
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
5.33
 Maximum
Safe Speed:
20.9
Fuel Type:
Coal / Oil
Fuel Capacity:
5 Tons / 1,200 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
156,300
Owners:
Hofius Steel & Equip.Co. (D), Seattle, WA
Skagit Log. Co. #5, Clear Lake (Skagit Spur), WA
(1914) Clear Lake Lbr. Co. #3 (2nd), Clear Lake, WA
(1929) Puget Sound Pulp & Tbr. Co. #3 (2nd), Clear Lake, WA
(1945) Puget Sound Pulp & Tbr. Co., English Unit #3 (2nd), Conway, WA
Disposition: (1952) Scrapped
Additional Notes:
