Lima Locomotive Corporation

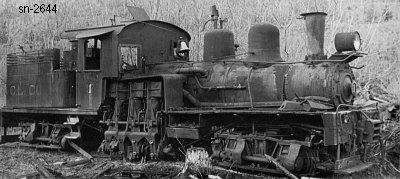

Photo Credit:
by A. H. Hill
Shop Number 2644 - Built for: Crookston Lbr. Co.
{2,083rd Lima Built Shay}
Built:
4-23-1913
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.09
Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
 Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,000
Owners:
Crookston Lbr. Co. #6, Bemidji, MN, For:
Wilton & Northern RR #6, Fowlds, MN
(c11-1913) Crookston Lbr. Co #6, Bemidji, MN
(1914) Crookston Lbr. Co.#12, Kelliher, MN
(by 6-8-1925) Stillwater Lbr. & Shingle Co. #1, Stillwater, WA
(by 11-21-1927) Swan & McKay Log. Co. #1, Stillwater, WA
(1931) Swan Lbr. Co. #1, Stillwater, WA
Disposition: Scrapped
Additional Notes: Shipped to: Funkley, MN
