Lima Locomotive Corporation

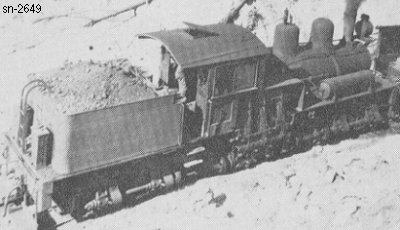

Photo Credit:
by A. S. Benham
Shop Number 2649 - Built for: Ohio & Michigan Sand & Gravel Co.
{2,088th Lima Built Shay}
Built:
3-14-1913
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.15
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
70,000
Owners:
Ohio & Michigan Sand & Gravel Co. #1, Chilson, MI
(1936) T. D. Folkenth, (?loc), MI
(1936) Vagabond Coach Mfg. Co. #1, New Hudson, MI
(10-3-1940) Converted to a stationary boiler used to heat the plant of Vagabond
Disposition: (10-3-1940) Scrapped
Additional Notes:
