Lima Locomotive Corporation

Photo Credit:
John and George Powers collection

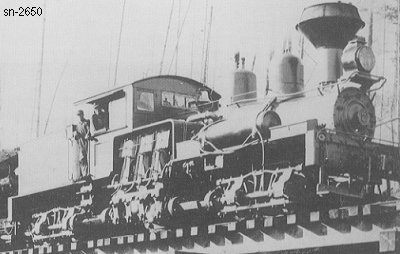

Shop Number 2650 - Built for: Smith-Powers Log. Co.
{2,089th Lima Built Shay}
Built:
3-22-1913
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.12
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,500
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Smith-Powers Log. Co. #7, Powers, OR
Coos Bay Lbr. Co. #3, Powers, OR
Disposition: Scrapped
Additional Notes:
