Lima Locomotive Corporation

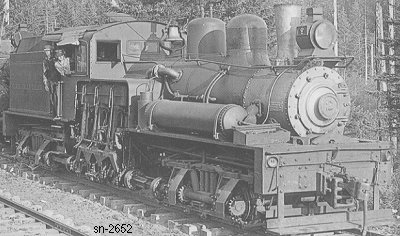

Photo Credit:
Drake photo from Oregon Historical Society
Shop Number 2652 - Built for: Silver Falls Tbr. Co.
{2,091st Lima Built Shay}
Built:
5-31-1913
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.97
Maximum
Safe Speed:

17.2
Fuel Type:
Oil
Fuel Capacity:
950 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
92,300
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Silver Falls Tbr. Co. #2, Silverton, OR
(c3-20-1921) Westport Lbr. Co., Mist, OR
(12-23-1929) Western Lbr. Co. #2, Westfir, OR
Natt McDougall Co. #2, Vancouver, WA
(9-14-1944) Guy F. Atkinson Co. #2806, Morro Bay, CA
Disposition: Scrapped
