Lima Locomotive Corporation

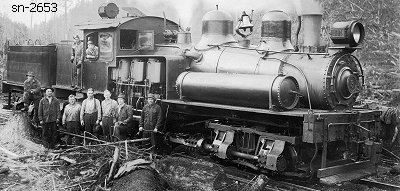

Photo Credit:
by Darius Kinsey from Monroe Historical Society
Shop Number 2653 - Built for: Sultan RY & Tbr. Co.
{2,092nd Lima Built Shay}
Built:
7-15-1913
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.21
 Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
130,750
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Sultan RY & Tbr. Co. #3, Sultan, WA
(c1923) Monroe Log. Co. #3, Machias, WA
Disposition: (11-25-1939) Scrapped
Additional Notes:
