Lima Locomotive Corporation

Photo Credit:
George Kadelak collection (1924)

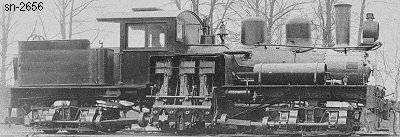

Shop Number 2656 - Built for: Mohr Lbr. Co.
{2,095th Lima Built Shay}
Built:
8-11-1913
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.09
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,000
Owners:
Mohr Lumber Co. #1, Hazelhurst, WI
Birmingham Rail & Loco. Co. (D) #1503, Birmingham, AL
(2-29-1924) Geneva Mill Co. #10, Geneva, AL
(8-18-1926) For sale
(1926) Jackson Lbr. Co., Dixie Route RR #9, Lockhart, AL
Disposition: Scrapped
Additional Notes: Converted to wood burner
