Lima Locomotive Corporation

Photo Credit:
George R. Kadelak collection (BP 2-1914)

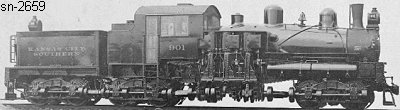

Shop Number 2659 - Built for: Kansas City Southern RY Co.
{2,098th Lima Built Shay}
Built:
2-4-1914
Class:
C
130-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 17 x 18
Gear Ratio:
2.45
Wheel Dia.:
48"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 62.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
59,742 Lbs.
 Factor of
Adhesion:
4.53
 Maximum
Safe Speed:
23.3
Fuel Type:
Oil
Fuel Capacity:
2,000 Gals.
Water Capacity:
4,000 Gallons
Empty Weight:
As built
226,900
Owners:
The Kansas City Southern RY Co., Kansas City Southern #901, Kansas City, MO
(1-28-1925) For sale
Disposition: (1929) Scrapped
Additional Notes:
