Lima Locomotive Corporation

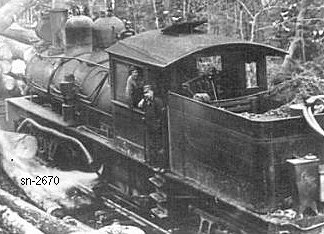

Photo Credit:
Jody Higgins collection
Shop Number 2670 - Built for: Carolina Spruce Co.
{2,109th Lima Built Shay}
Built:
4-30-1913
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
23,868 Lbs.
Factor of
Adhesion:

5.47
Maximum
Safe Speed:

19.4
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
105,200
Owners:
Carolina Spruce Co. #1, Pensacola, NC
(6-1918) Southern Iron & Equip. Co. (D) #1296, Atlanta, GA
(6-25-1918) Marathon Lbr. Co. #60, Laurel, MS
(9-9-1929) Eastman, Gardiner & Co., Laurel & Tallahoma Western RY #60, Laurel, MS
Disposition: Scrapped
Additional Notes:
