Lima Locomotive Corporation

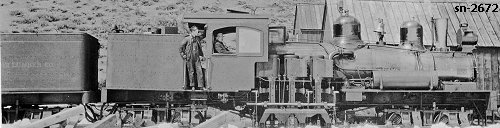

Photo Credit:
Martin E. Hansen collection
Shop Number 2672 - Built for: Verdi Lbr. Co.
{2,111th Lima Built Shay}
Built:
6-21-1913
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.22
 Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
2,000 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
126,000
Owners:
Verdi Lbr. Co. #3, Verdi, NV
(1-09-1928) Clover Valley Lbr. Co. #3, Loyalton, CA
Disposition: (1955) Scrapped
Additional Notes:
