Lima Locomotive Corporation

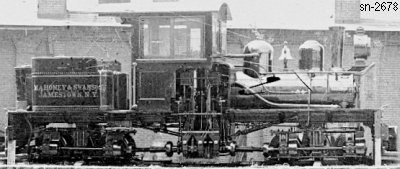

Photo Credit:
George R. Kadelak collection (BP 6-1913)
Shop Number 2678 - Built for: Mahoney & Swanson
{2,117th Lima Built Shay}
Built:
6-26-1913
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
3.077
Wheel Dia.:
22"
Gauge:
24"
Boiler:
[Style - Dia.]

ST. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
6,042 Lbs.
Factor of
Adhesion:

4.59
Maximum
Safe Speed:

8.5
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
400 Gallons
Empty Weight:
As built
23,430
Owners:
Mahoney & Swanson #1, Filwanna, NY
Woolsey Construction Co., Davenport, IA
(by 7-6-1920) Porter Brothers Construction Co., Mt. Pocono, PA
(9-18-1923) Clapp, Riley & Hall Equip. Co. (D), Clyde, IL
(9-18-1923) For sale
Disposition: Scrapped
Additional Notes:
