Lima Locomotive Corporation

Photo Credit:
David Thomas collection *
Shop Number 2683 - Built for: John Marsh
{2,122nd Lima Built Shay}
Built:
8-4-1913
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.77
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
400 Gallons
Empty Weight:
As built
86,280
Owners: (Includes new data after 2018 Shay book completed)
John Marsch #112, Longview, PA
Bluestone Land & Lbr. Co. #112, Gardner, WV
Southern Iron & Equip.t Co. (D), #1333, Atlanta, GA
(11-12-1918) Zimmerman, Wells & Brown Co. (D), Portland, OR
(3-3-1920) Murphy Tbr. Co. #112, Yacolt, WA
(by 8-23-1924) Leased to: Deer Island Log.Co. #112, Deer Island, OR
(9-24-1926) Columbia River Tbr. Co. #112, Yacolt, WA
Disposition: Scrapped

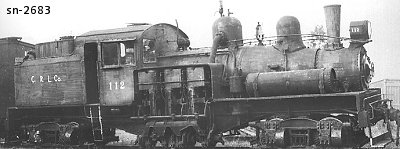

Additional Notes: * Railfan apparently incorrectly lettered the Shay for the photo with C R L Co when it should be C R T Co., likely close to scrapping; the drive shafts are already removed.
