Lima Locomotive Corporation
Photo Credit:

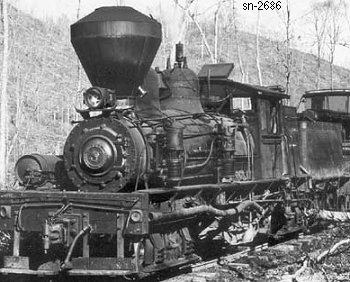

Left: by John Krause photo (1950's)

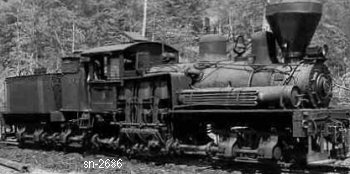

Right: by D. Wallace Johnson (c1956)
Shop Number 2686 - Built for: Meadow River Lbr. Co.
{2,125th Lima Built Shay}
Built:
8-16-1913
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

4.95
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
118,575
Owners:
Meadow River Lbr. Co. #3, Rainelle, WV
Disposition: (1958) Dismantled for parts
Additional Notes: Shipped to: Meadow Creek, WV
