Lima Locomotive Corporation

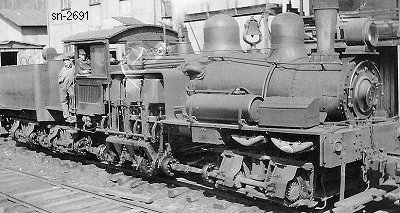

Photo Credit:
Thomas Lawson Jr. collection
Shop Number 2691 - Built for: Croft Lbr. Co.
{2,130th Lima Built Shay}
Built:
2-21-1914
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.08
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
122,300
Owners:
Croft Lbr. Co., Croft RR #5, Alexander, WV
(1925) Birmingham Rail & Loco.e Co. (D), Birmingham, AL
(10-30-1925) Intermountain Coal & Lbr. Co. #5, Putney, KY
Disposition: Scrapped
Additional Notes:
