Lima Locomotive Corporation

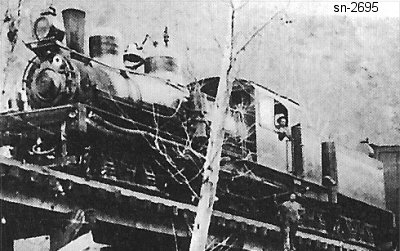

Photo Credit:
Jerry Ledford collection
Shop Number 2695 - Built for: Andrews Lbr. Co.
{2,134th Lima Built Shay}
Built:
10-2-1913
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.07
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
122,100
Owners:
Andrews Lbr. Co. #202, Andrews, NC
(by 7-6-1925) Andrews Mfg. Co. #2, Andrews, NC
Leased to: Curry Brothers Co., Andrews, NC
Andrews Hardwood Co. #2, Andrews, NC
(8-16-1930) Cherry River Boom & Lbr. Co. #1 (2nd), Richwood, WV
(9-14-1945) West Virginia Coal & Coke Co. #1, Omar, WV
Disposition: Scrapped
Additional Notes:
