Lima Locomotive Corporation

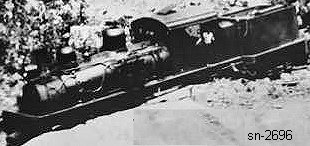

Photo Credit:
Jeff Dickerson collection
Shop Number 2696 - Built for: Millboro Lbr. Co.
{2,135th Lima Built Shay}
Built:
2-20-1914
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.08
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
122,400
Owners:
Millboro Lbr. Co., Mill Creek RR #2, Hotchkiss, VA
(8-20-1925) R. E. Wood Lbr. Co. #2, Hotchkiss, VA
(11-22-1928) Millboro Lbr. Co. Mill Creek RR #2, Hotchkiss, VA
Disposition: Scrapped
Additional Notes:
