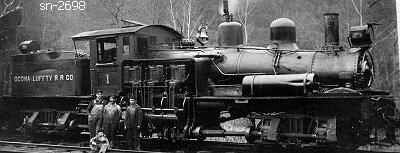

Lima Locomotive Corporation

Photo Credit:
Martin E. Hansen collection
Shop Number 2698 - Built for: Brown Brothers Lbr. Co.
{2,137th Lima Built Shay}
Built:
7-25-1913
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
23,868 Lbs.
Factor of
Adhesion:

5.36
Maximum
Safe Speed:

19.4
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
102,700
Owners:
Brown Brothers Lbr. Co. #1, Murchison, NC
(10-1920) Champion Fibre Co., Ocono Lufty RR #1, Ravensford, NC
(10-1925) Blackwood Lbr. Co. #1, Smokemont, NC
(10-1925) Leased to: Badgett & Latham Lbr. Co. #1, Smokemont, NC
(11-1928) Champion Fibre Co. #1, Smokemont, NC
Champion Fibre & Paper Co. #6, Canton, NC
(by 1939) Derelict at Canton, NC
Disposition: Scrapped
Additional Notes: Shipped to: Murchison
