Lima Locomotive Corporation


Photo Credit:
Both: Max S. Robin, P.E. collection (right BP 12-1913)

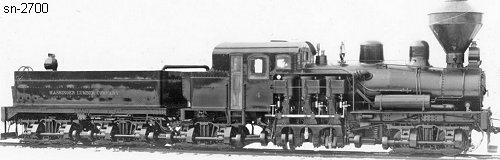

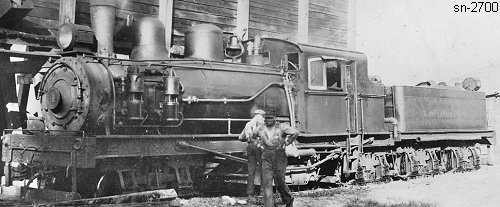

Shop Number 2700 - Built for: Hassinger Lbr. Co.
{2,139th Lima Built Shay}
Built:
12-1-1913
Class:
D
100-4
Trucks:
4
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.278
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
44,902 Lbs.
 Factor of
Adhesion:
5.17
Maximum
Safe Speed:
18.8
Fuel Type:
Coal
Fuel Capacity:
6 Tons
Water Capacity:
4,500 Gallons
Empty Weight:
As built
188,300
Owners:
Hassinger Lbr. Co., White Top RY #4, Konnarock, VA
(9-30-1929) Bemis Lbr. Co., Graham County RR #4, Robbinsville, NC
(11-1929) Wrecked, used as a stationary back up boiler supply for mill
Disposition: (4-1947) Scrapped
Additional Notes:
