Lima Locomotive Corporation

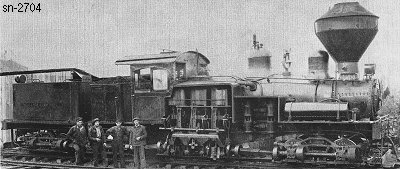

Photo Credit:
by Darius Kinsey
Shop Number 2704 - Built for: Pine Belt Lbr. Co.
{2,143rd Lima Built Shay}
Built:
2-26-1914
Class:
C
75-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
34"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
32,162 Lbs.
 Factor of
Adhesion:
5.06
Maximum
Safe Speed:
18.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
131,000
Owners:
Pine Belt Lbr. Co. #7, Fort Towson, OK
(by 11-29-1918) Henderson Land & Lbr. Co. #5, Fox, AL
(2-29-1924) Birmingham Rail & Loco. Co. (D) #1517, Birmingham, AL
(3-1924) English Lbr. Co. #14, Conway, WA
(1926) Wrecked and rebuilt
(6-15-1945) Puget Sound Pulp & Tbr. Co., English Division #14, Conway, WA
Disposition: (c1946) Scrapped
Additional Notes:
