Lima Locomotive Corporation

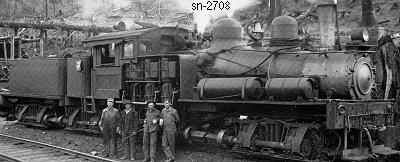

Photo Credit:
by Darius Kinsey from Whatcom Museum of History and Art collecion
Shop Number 2708 - Built for: Day Lbr. Co.
{2,147th Lima Built Shay}
Built:
10-4-1913
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
5.30
Maximum
Safe Speed:
20.9
Fuel Type:
Coal / Oil
 Fuel Capacity:
5 Tons / 1200 Gal
 Water Capacity:
3,500 Gallons
Empty Weight:
As built
150,460
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Day Lbr. Co. #3, Big Lake, WA
J. C. Wexon (receiver), Big Lake, WA
(4-21-1926) For sale
(10-18-1926) English Lbr. Co. #15, Conway, WA
(6-15-1945) Puget Sound Pulp & Tbr. Co., English Division #15, Conway, WA
Disposition: (c1946) Scrapped
Additional Notes:
