Lima Locomotive Corporation

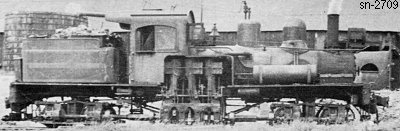

Photo Credit:
by Irvin Mountain
Shop Number 2709 - Built for: A. A. Urmann
{2,148th Lima Built Shay}
Built:
11-14-1913
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,832 Lbs.
 Factor of
Adhesion:
4.16
 Maximum
Safe Speed:
13.9
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,800
Owners:
A. A. Urmann #1, Ridgway, PA; For
Ridgway Sand & Stone Co. #1, Croyland PA (Ridgway was the office)
(by 1-24-1919) Day Chemical Co., Valley RR #2 (1st), Westline, PA
(5-4-1935) Union Charcoal & Chemical Co. #1, Westline, PA
Disposition: (c1940) Scrapped
Additional Notes: new firebox 6-17-1927
