Lima Locomotive Corporation

Photo Credit:
George R. Kadelak collection

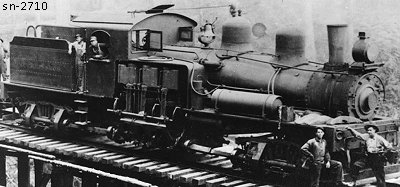

Shop Number 2710 - Built for: Hamilton Creek RR
{2,149th Lima Built Shay}
Built:
8-30-1913
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.59
 Maximum
Safe Speed:
19.4
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
110,700
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Hamilton Creek RR Co., Hamilton Creek RR #1, Stevenson, WA
Rucker Brothers Lbr. Co. #5, Lake Stevens, WA
(1-21-1927) Stored at: Lake Stevens, WA
Disposition: Scrapped
Additional Notes: Shipped to: Hamilton Creek Spur, WA
