Lima Locomotive Corporation

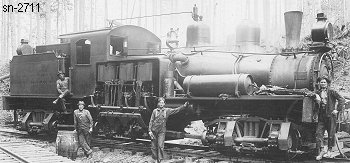

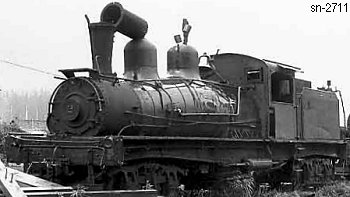

Photo Credit:
Left: Martin E, Hansen collection
Right: Marc Reusser collection
Shop Number 2711 - Built for: Hamilton Creek RR
{2,150th Lima Built Shay}
Built:
8-30-1913
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.59
 Maximum
Safe Speed:
19.4
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
110,700
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Hamilton Creek RR Co., Hamilton Creek RR #2, Stevenson, WA
(9-14-1918) Puget Sound Mills & Tbr. Co. #2 (2nd), Twin, WA {Mill at Port Angeles, camps at Majestic, Murdock Creek, Twin}
(10-1-1925) The Charles Nelson Co. #2, Piedmont, WA
The Charles Nelson Co. #2, Sol Duc, WA
(2-3-1926) Leased to: Irving-Hartley Log. Co., Twin, WA
(6-25-1927) Crescent Log. Co. #2, Twin, WA
(1931) Crescent Log. Co. #2, Piedmont, WA
(5-5-1947) Fibreboard Products, Inc. #2, Sol Duc, WA
(5-1952) Derelict at Piedmont, WA
Disposition: Scrapped
Additional Notes: Shipped to: Hamilton Creek Spur, WA
