Lima Machine Works

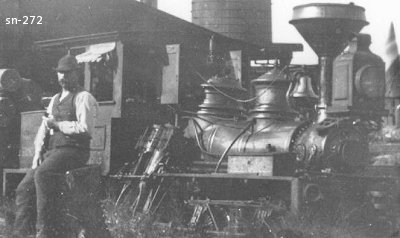

Photo Credit:
Donald Hensley collection
Shop Number 272 - Built for: Bond Lbr. Co.
{236th Lima Built Shay}
Built:
3-3-1890
Class:
A
15-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7x9
Gear Ratio:
2.050
 Wheel Dia.:
21"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 26"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
6,300 Lbs.
 Factor of
Adhesion:
4.54
 Maximum
Safe Speed:
10.1
Fuel Type:
Coal
Fuel Capacity:
1 Ton
Water Capacity:
456 Gallons
Empty Weight:
As built
23,300
Owners:
Bond Lbr. Co. #272, Glenwood, FL
(c1920's) Clifton Belknap, Cape Ann, MA
Disposition: (c1940's) Scrapped for war scrap metal drive
Additional Notes:
