Lima Locomotive Corporation

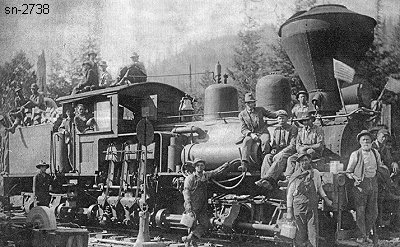

Photo Credit:
Jim Stahlman collection from Scott Gavin
Shop Number 2738 - Built for: Hammond Lbr. Co.,
{2,177th Lima Built Shay}
Built:
1-15-1914
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.31
 Maximum
Safe Speed:
17.1
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,560 Gallons
Empty Weight:
As built
73,400
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Hammond Lbr. Co. #3 (2nd), Mill City, OR
Hammond-Tillamook Lbr. Co. #3, Garibaldi, OR
Disposition: Scrapped
Additional Notes:
