Lima Locomotive Corporation

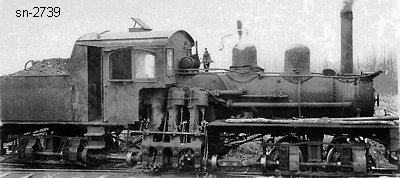

Photo Credit:
George R. Kadelak collection
Shop Number 2739 - Built for: Delta Chemical Co.
{2,178th Lima Built Shay}
Built:
8-31-1915
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
29"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 37.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
14,639 Lbs.
 Factor of
Adhesion:
4.55
Maximum
Safe Speed:
11.2
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
54,100
Owners:
Delta Chemical Co. #3, Wells, MI
(1922) Delta Chemical & Iron Co. #3, Wells, MI
Disposition: (1944) Scrapped at Wells, MI
Additional Notes:
