Lima Locomotive Corporation

Photo Credit:
by unknown

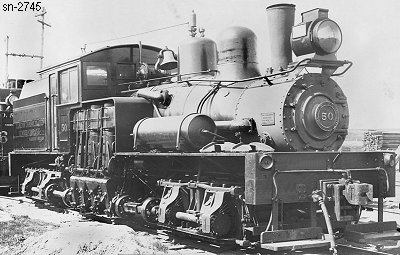

Shop Number 2745 - Built for: Carlton Consolidated Lbr. Co.
{2,184th Lima Built Shay}
Built:
4-10-1914
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.86
Maximum
Safe Speed:

17.2
Fuel Type:
Oil
Fuel Capacity:
950 Gals.
Water Capacity:
1,750 Gallons
Empty Weight:
As built
90,800
Owners:
Carlton Consolidated Lbr. Co., Carlton & Coast RR #50, Carlton, OR
(7-13-1922) Leased to: Westport Lbr. Co., Westport, OR
(11-1923) Flora Log. Co. Carlton & Coast RR #50 later #6 (2nd in 1925), Tillamook Gate, OR
Flora Log. Co. Carlton & Coast RR #6 (2nd), Neverstill, OR
(1939) Abandoned at Neverstill with other equipment after fire
(1942) Recovered moved to Carlton
(4-7-1943) Dulien Steel Products Co. (D), Portland, OR
Disposition: Scrapped
Additional Notes: Carlton & Coast RR ran from Carlton to Tillamook Gate
