Lima Locomotive Corporation

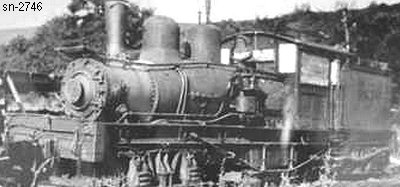

Photo Credit:
Wes Ives collection
Shop Number 2746 - Built for: Rich Lbr. Co.
{2,185th Lima Built Shay}
Built:
4-14-1914
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.82
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,200 Gallons
Empty Weight:
As built
84,300
Owners:
Rich Lbr. Co., Lye Brook RR #7, Manchester, VT
(1919) J. F. Worsley Ltd. (D), Atlanta, GA
(9-1920) E. E. Jackson Lbr. Co. #15, Riderwood, AL
Disposition: Scrapped
Additional Notes:
