Lima Locomotive Corporation

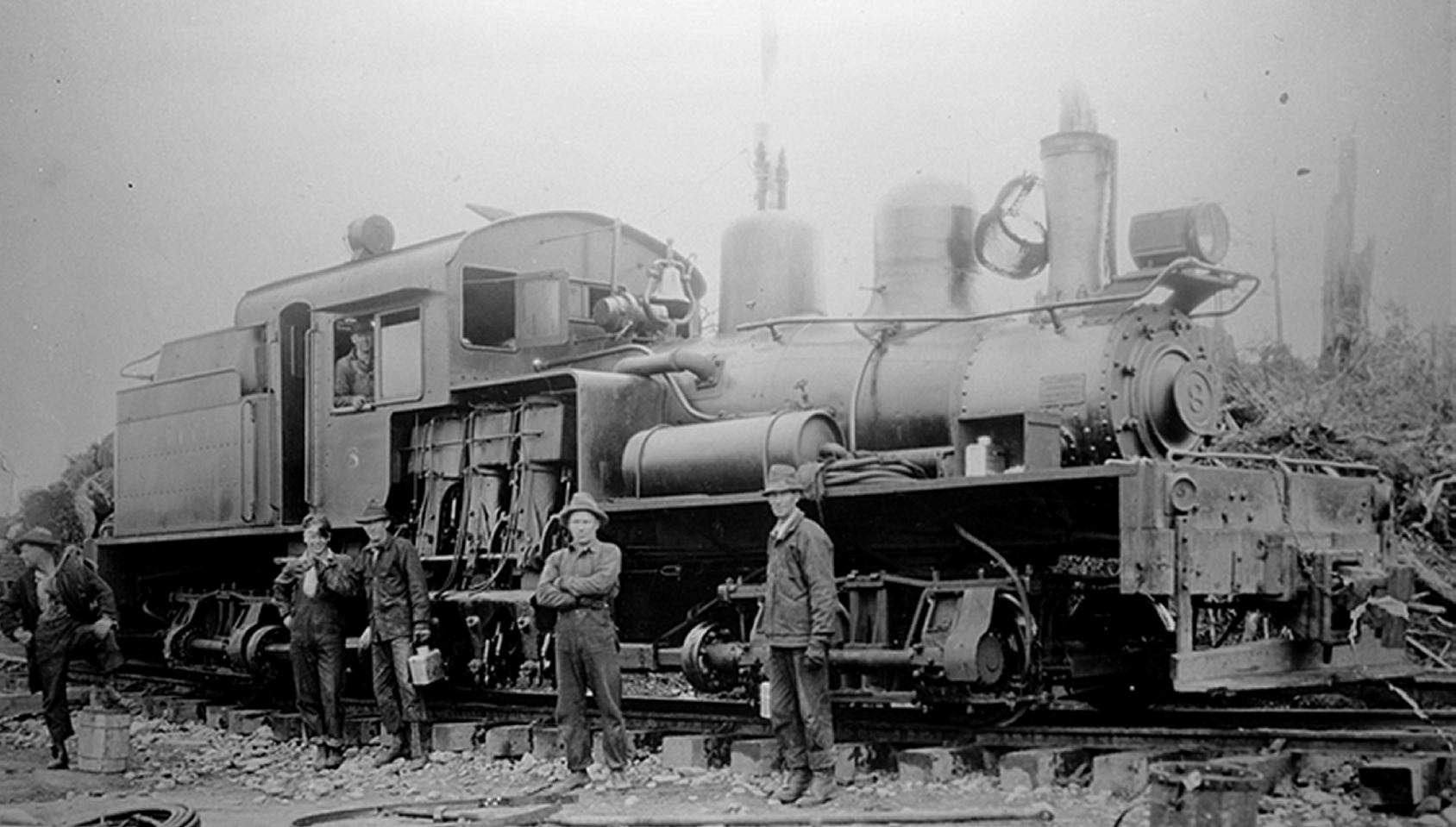

Photo Credit:
John T. Labbe Collection
Shop Number 2747 - Built for: Hammond Lbr. Co.
{2,186th Lima Built Shay}
Built:
1-15-1914
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.27
Maximum
Safe Speed:

17.1
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,560 Gallons
Empty Weight:
As built
72,700
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Hammond Lbr. Co. #6 (2nd), Rainier, OR
(10-27-1920) Crown Willamette Paper Co. #8, Seaside, OR
(9-20-1933) Washington Pulp & Paper Corp. #8, Neah Bay, WA
Disposition: Scrapped
Additional Notes:
