Lima Locomotive Corporation

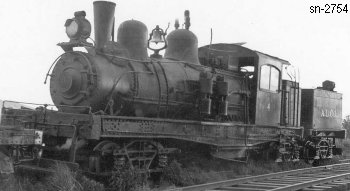

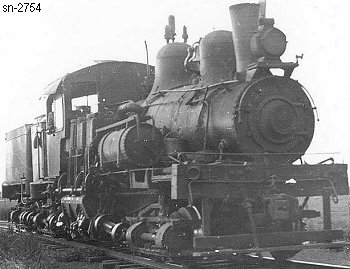

Photo Credit:
Both: by R. C. Moulton from Martin E. Hansen collection (6-1939)
Shop Number 2754 - Built for: Stephens-Bird Log. & Lbr. Co.
{2,193rd Lima Built Shay}
Built:
4-25-1914
Class:
C
75-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
35"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.17
Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
129,700
Owners:
Hofius Steel & Equip.Co. (D), Seattle, WA
Stephens-Bird Log. & Lbr. Co. #4, Monroe, WA (1)
(11-1926) Dry Creek Log. Co. #4, Tahuya, OR
(by 9-30-1927) Algoma Lbr. Co. #4, Algoma, OR
(4-1937) Klamath Tbr. Co. #4, Algoma, OR
(2-4-1944) Oregon Shipbuilding Co. #4, Portland, OR
Disposition: Scrapped
Additional Notes: (1) Local name: Stephens-Bird Lbr. Co.
??Owner: (8-11-1926) Rebuilt by Snohomish Iron Works and for sale, Snohomish, WA
