Lima Locomotive Corporation

Photo Credit:
John Henderson collection

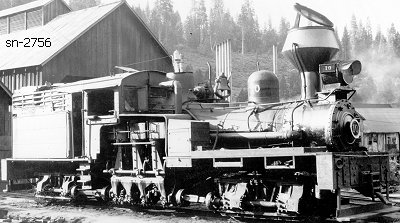

Shop Number 2756 - Built for: C. D. Danaher Pine Co.
{2,195th Lima Built Shay}
Built:
4-17-1914
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,306 Lbs.
Factor of
Adhesion:

5.08
Maximum
Safe Speed:

17.2
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
84,500
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
C. D. Danaher Pine Co. #10, Camino, CA
(1915) R. E. Danaher Co. #10, Camino, CA
(1918) Michigan-California Lbr. Co. #10, Camino, CA
(c1940) Converted to wood burner
Disposition: (1950 ) Scrapped
Additional Notes: Shipped to: Placerville, CA
